Red wax 3d printing material

Material Characteristics

It is a photosensitive resin containing ceramic particles with high strength and temperature resistance, ideal for testing parts for jewelry, silicone compression films, pump housings, blades, wind tunnels, light reflectors and various automotive applications. Suitable for high precision model testing, hand boards, jewelry, and precision parts.

Material Properties

• Accuracy: 0.1-0.2mm
• Process: DLP light curing
• Material Model: RC30
• Minimum detail: 0.20
• Recommended wall thickness: 1.00
• Surface quality: smooth
• Molding size: 160*100*180mm

Introducing RC30 Red Wax

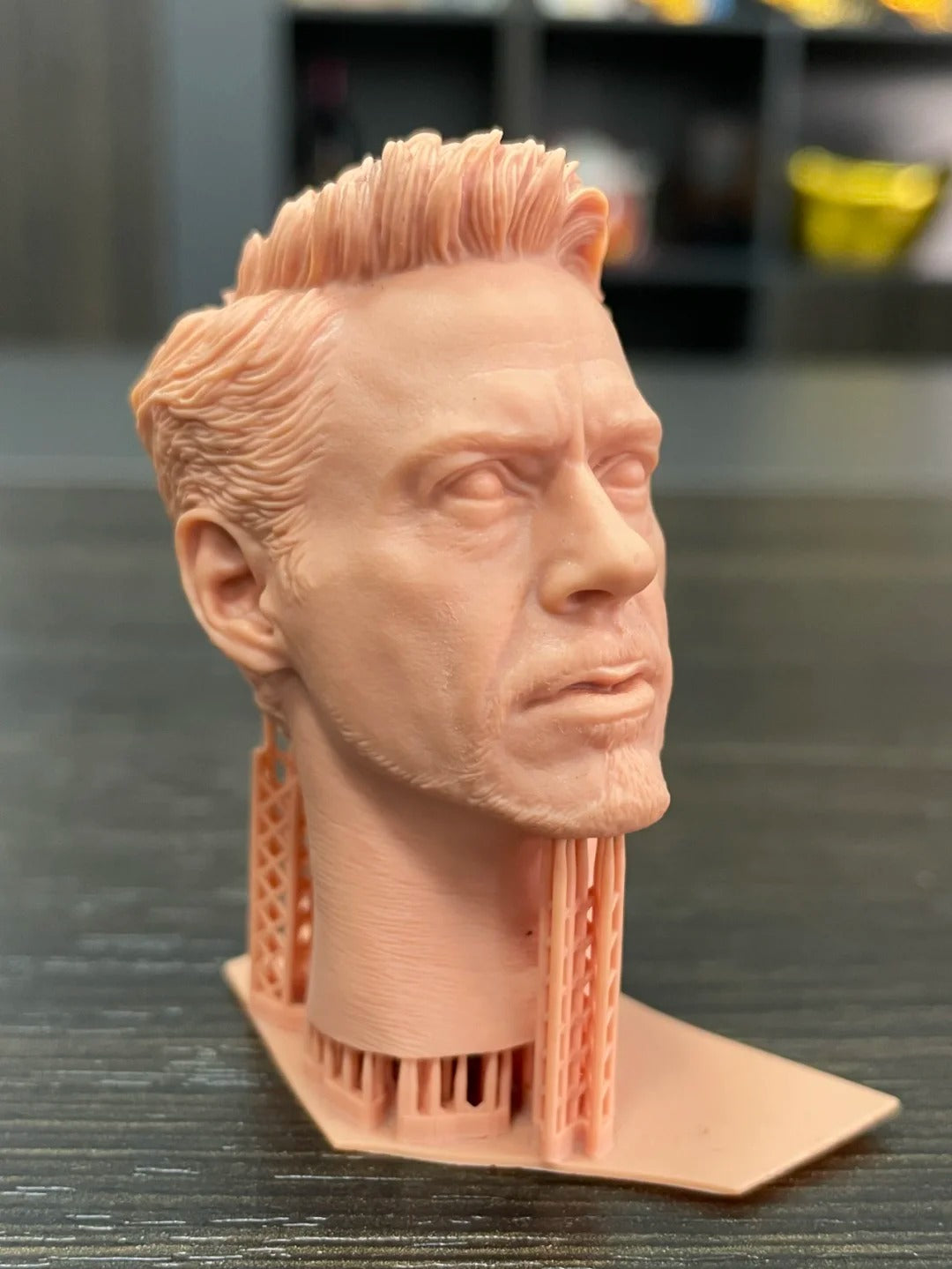

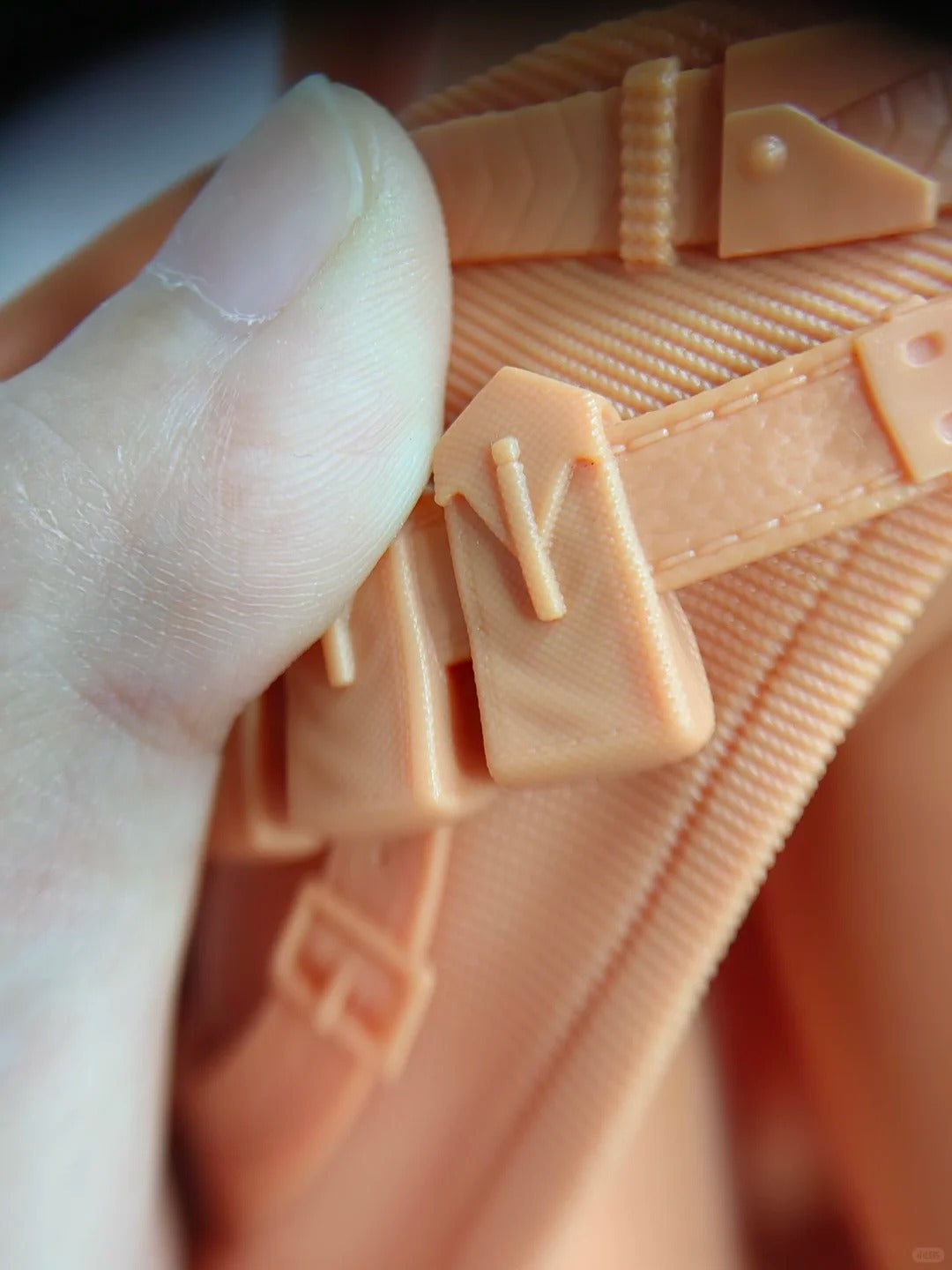

Red Wax 3d printing material EnvisionTEC RC30 high temperature resistant resin is used to print high resolution tough and rigid components. Red Wax RC30 is a nanoparticle filled material for printing abrasion, rigid and high temperature resistant parts used in silicone molds.Another important advantage of the RC material is the high level of detail on its surface, such as printing highly detailed jewelry models and animation applications.

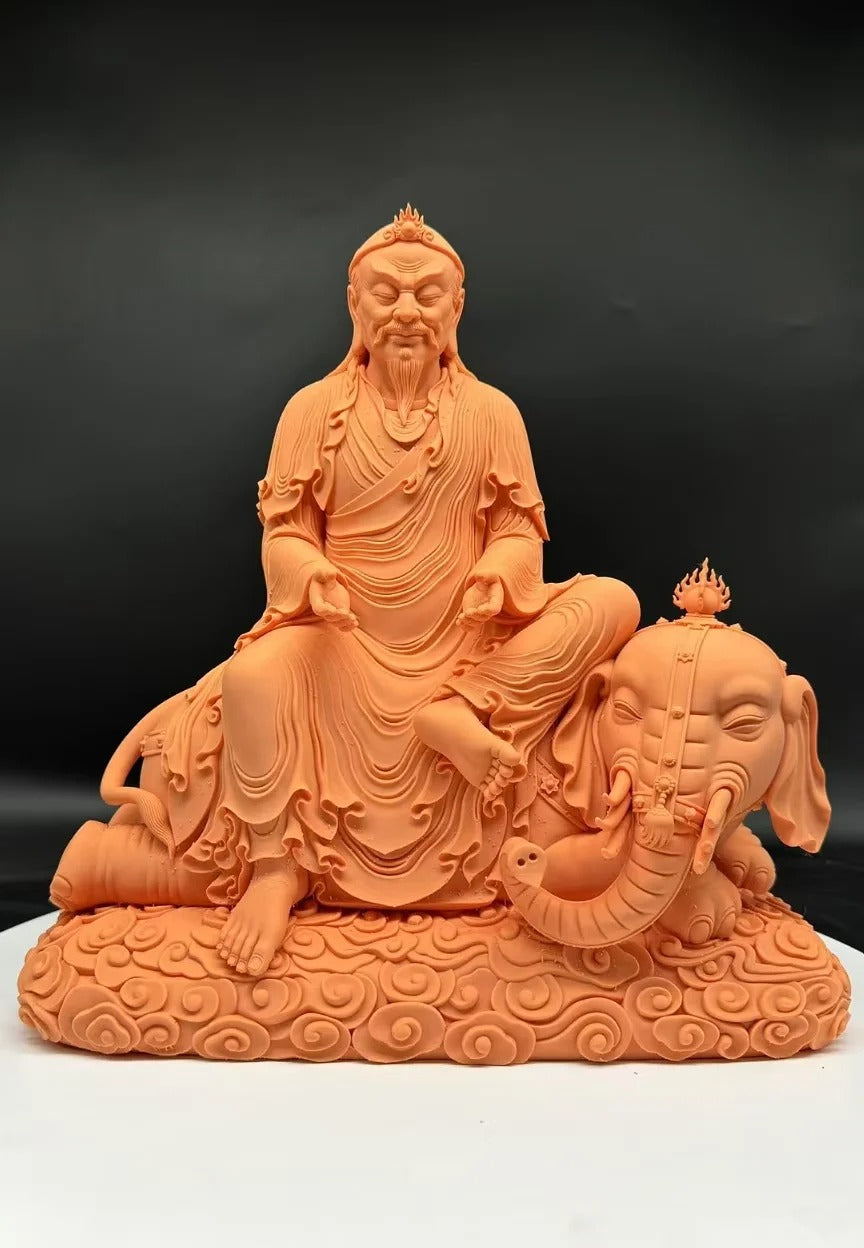

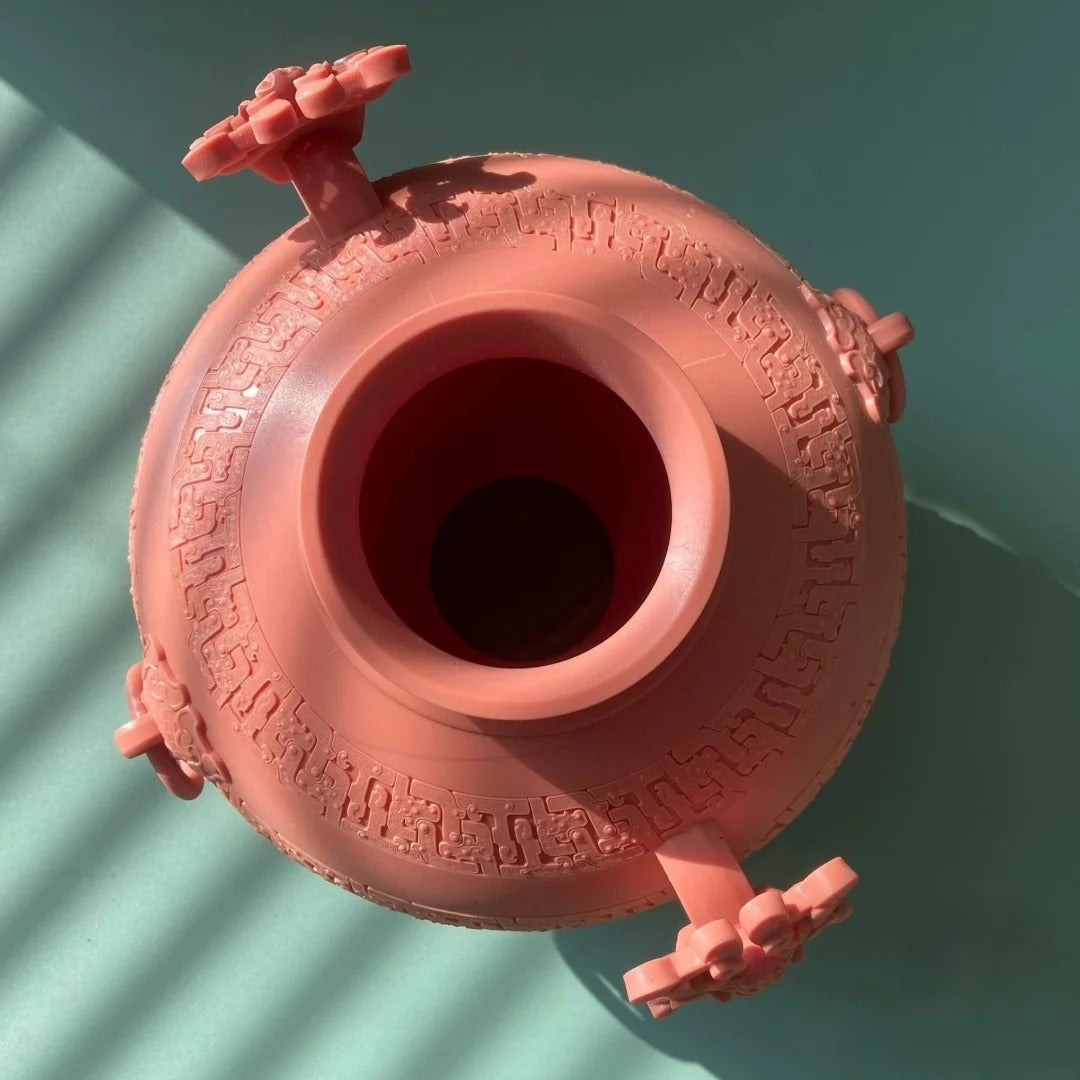

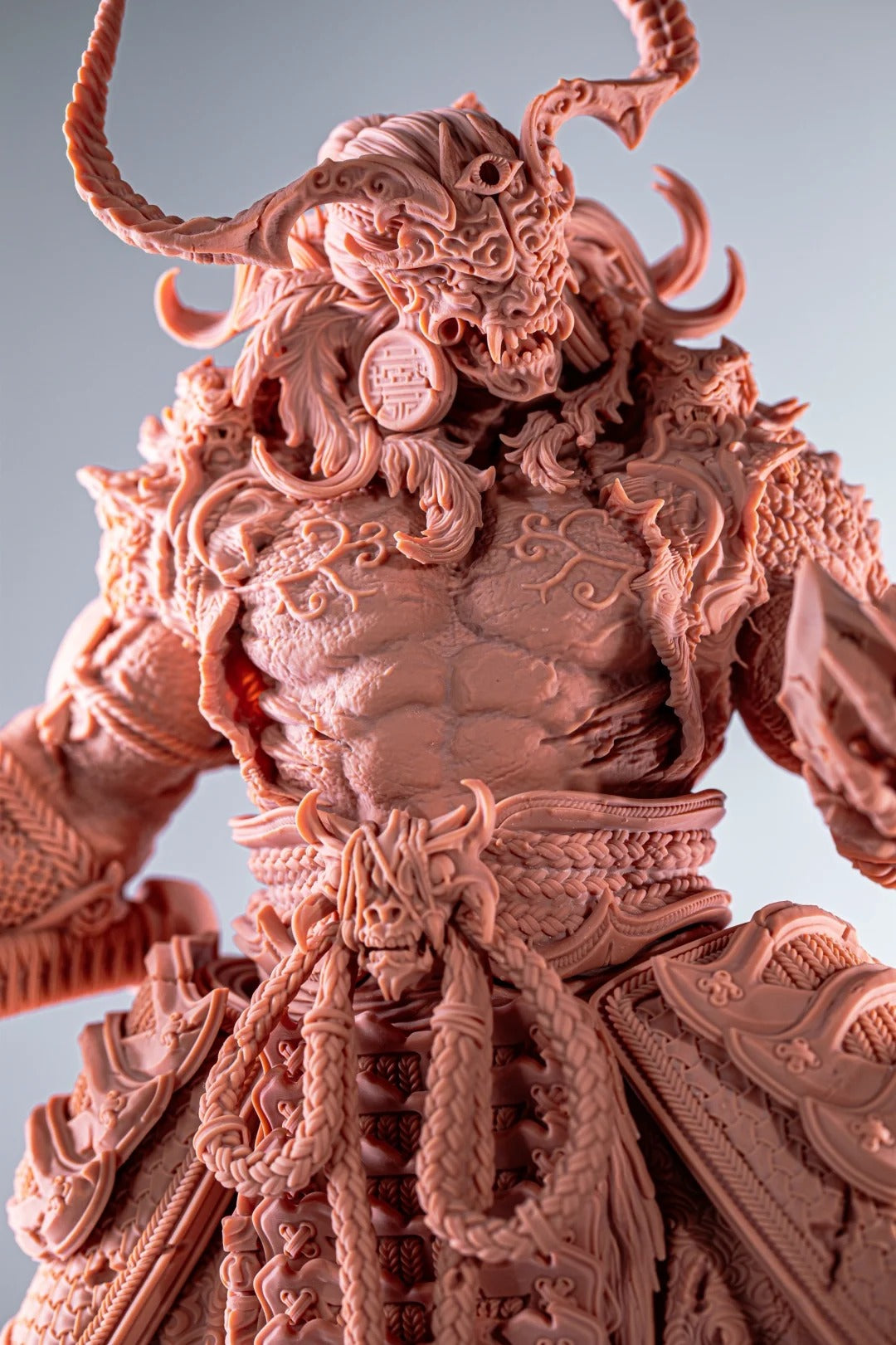

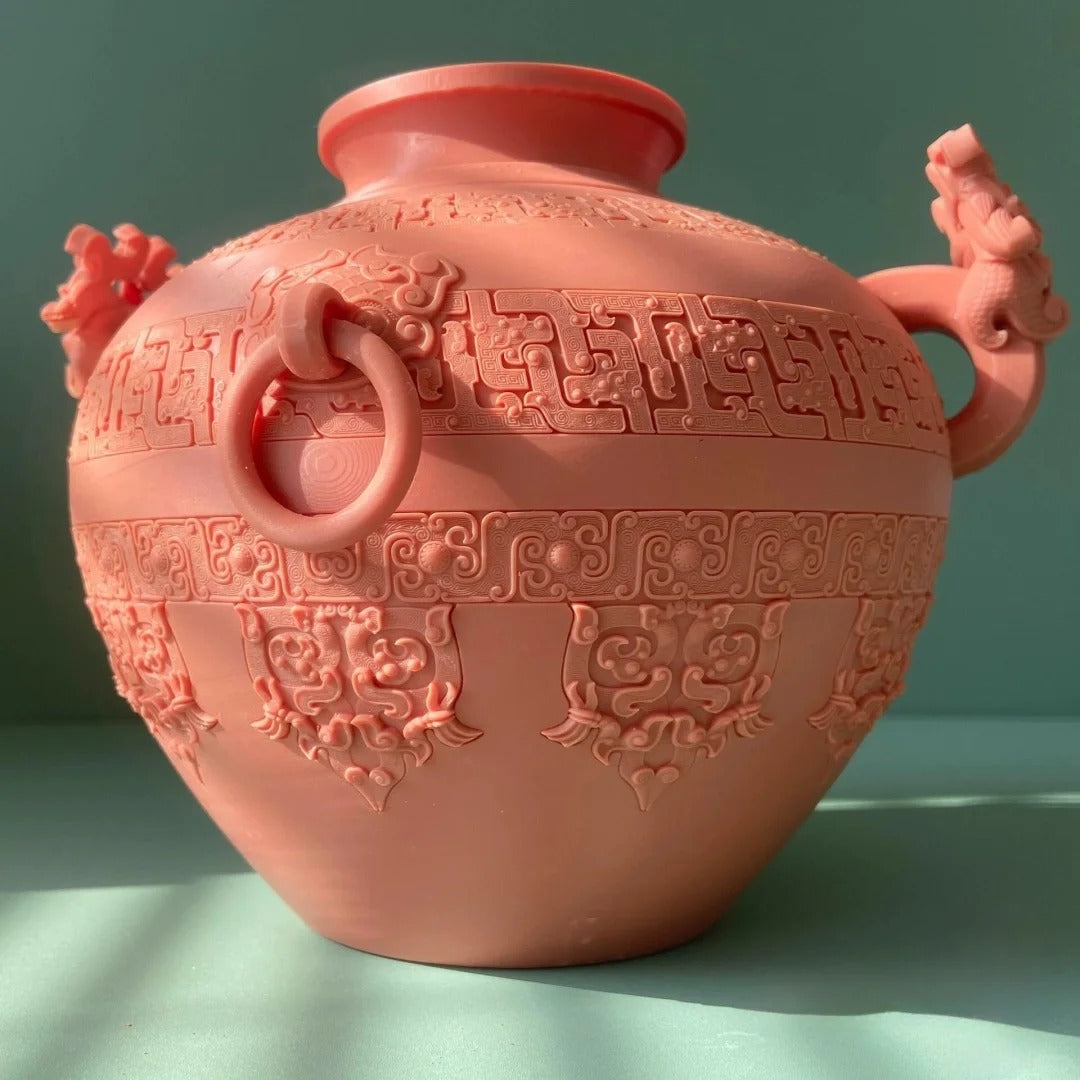

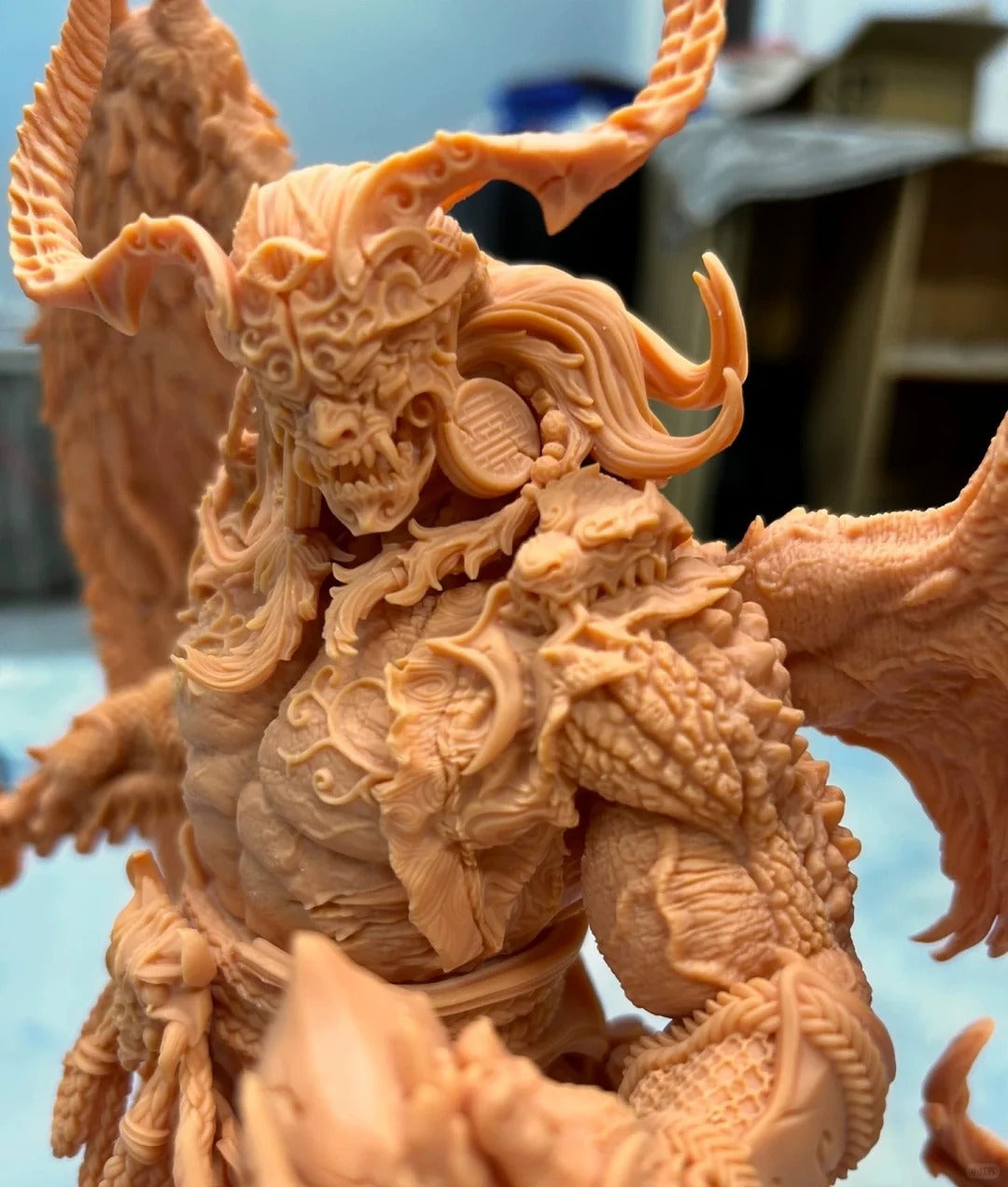

The material has the advantages of high precision and high expressive power, the use of the material to print the model effect of fine pattern, smooth surface quality, widely used in jewelry, miniature medical equipment, gears, electrical components, figurines, replicas, collectibles, mechanical parts and other precision investment casting field.
PS: RC30 red wax can not be direct casting, ceramic added inside, the process route is to be the first pressure film, such as direct casting needs can be printed purple wax material (purple wax Visijet M2).

The physical properties of RC series red wax are as follows
